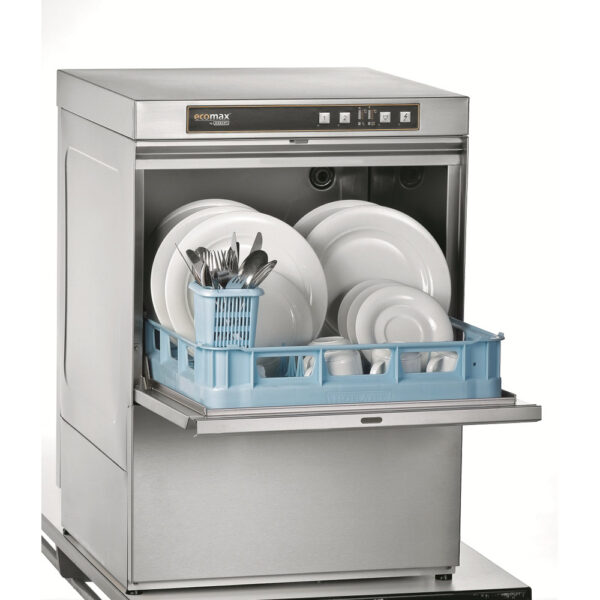

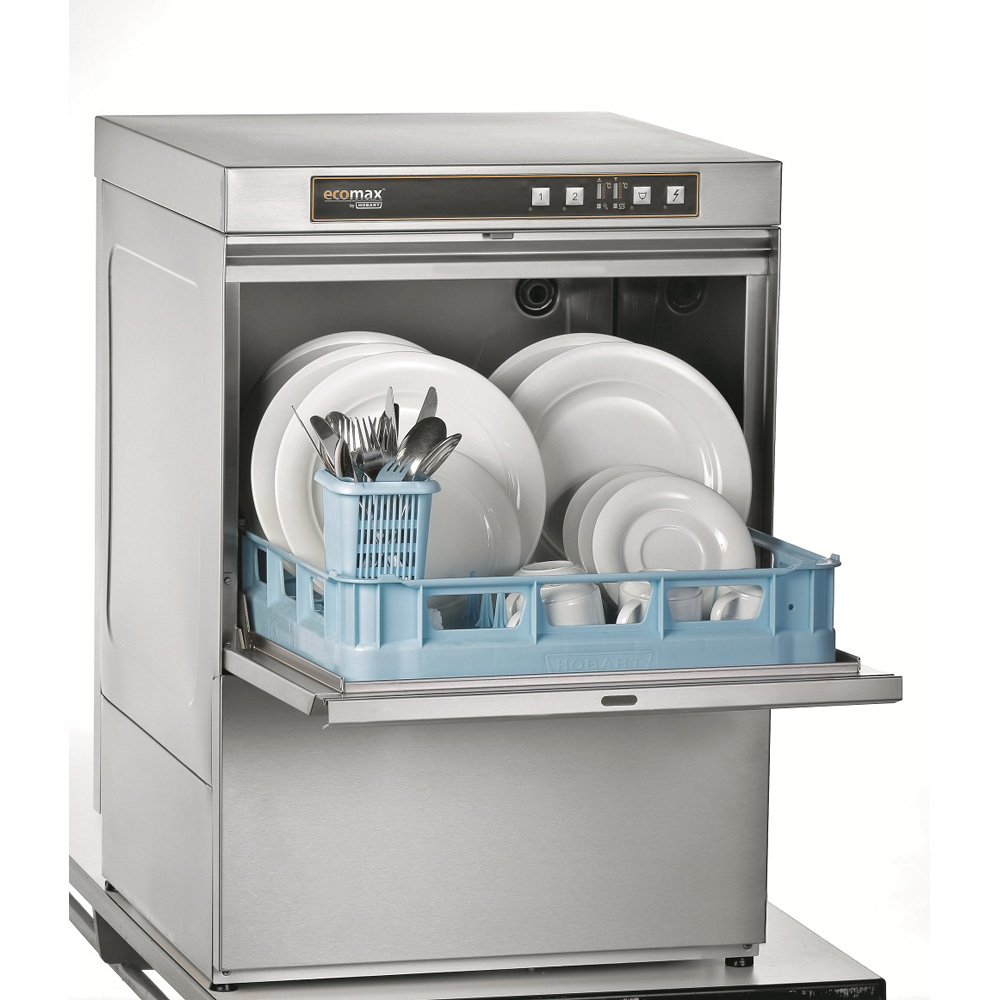

Hobart Ecomax F502 Front Loading Dishwasher 500mm Basket

Professional front-loading commercial dishwasher with a 500 mm basket, designed for reliable dishwashing in busy kitchens. The Hobart Ecomax F502 can wash up to 60 racks per hour (up to 18 plates per rack) using fast 60–180 second wash cycles. Built with a double-skinned stainless-steel door, electronic controls and efficient water consumption, it provides durable and economical performance for professional food service environments.

  • Height (mm): 830
  • Width (mm): 575
  • Depth (mm): 600
SKU: N/A Category: Brand:

Description

The Hobart Ecomax F502 Front Loading Dishwasher (500 mm basket) is a professional undercounter dishwasher designed for commercial kitchens that require fast, reliable and efficient dishwashing performance. With a 500 × 500 mm rack capacity, the machine can wash up to 18 plates per rack and process up to 60 racks per hour, helping maintain a smooth workflow during busy service periods.

The dishwasher offers programmable wash cycles from 60 to 180 seconds, allowing operators to select the appropriate program depending on the level of soil and kitchen demand. With a water consumption of approximately 2.9 litres per cycle, the machine provides strong cleaning performance while keeping operating costs low.

Constructed with a double-skinned stainless-steel door, the F502 helps reduce noise and improve insulation during operation. The machine features separate rotating upper and lower wash and rinse arms with anti-block jets, ensuring consistent water distribution and effective cleaning across all dishes in the rack.

To maintain hygienic results, the dishwasher includes a thermostop rinse control, ensuring the rinse cycle runs only at the correct temperature. Integrated detergent and rinse-aid dosing systems simplify daily operation and help maintain consistent washing performance with minimal manual intervention.

With its compact undercounter design, intuitive electronic controls and reliable German-engineered performance, the Hobart Ecomax F502 is a practical solution for restaurants, bars and professional kitchens requiring dependable commercial dishwashing capacity in a space-efficient unit.

Additional information

Height (mm)

830

Width (mm)

575

Depth (mm)

600

Number of racks

1 x plate rack 1 x cutlery basket

Rack size

50×50

Max plates

18

Max racks p/h

60

Net weight

44

Rinse booster pump

Yes

Built in detergent dispenser

Yes

Built in rinse aid dispenser

Yes

Double Skinned

Yes

Controls

Electronic

Class A air gap

Yes

Thermostop Control

Yes

Programme times (sec)

60 – 180

Water Consumption (lts)

2.9

Wash Tank Capacity (lts)

25

Wash tank heating

2.0kW

Rinse Tank Capacity (lts)

5.6

Drain pump

Yes

Wash pump rating

0.37kW

Wash pump flow rate

220L/min

Rinse pump rating

0.25kW

Rinse pump flow rate

20L/min

Noise level (dB)

61

Water pressure (bar)

0.8 – 6

Water temp MAX

60

Voltage 3P

400/50/3

Voltage 1P

230/50/1

Total loading 3P

3 x 16A/6.0kW

Total loading 1P

13A/2.3kW factory settings, 25A/4.2kW
